Access Panels & Roof Hatches

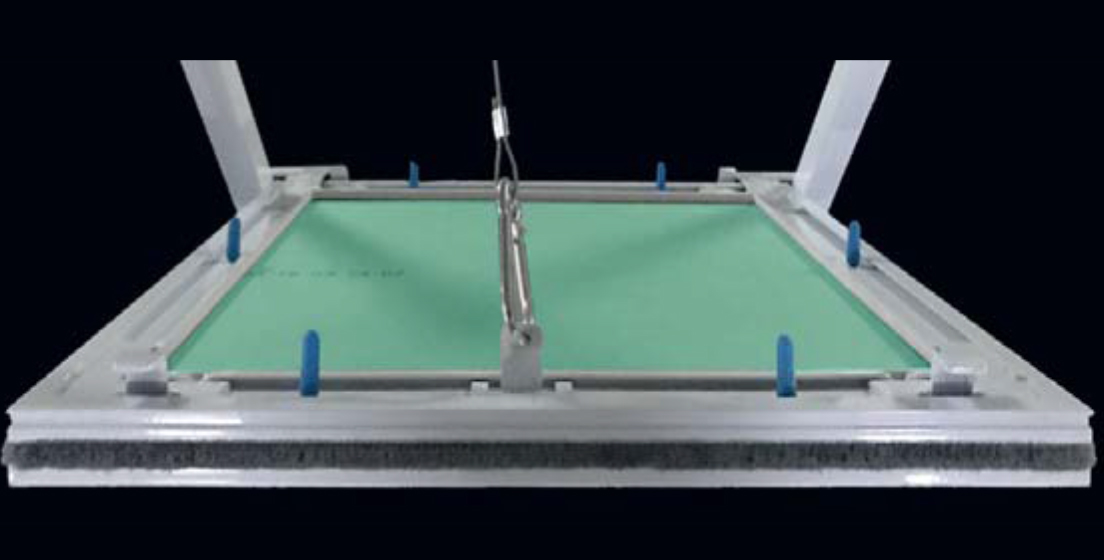

Gypsum Board Access Panel - Pivot Type is built with powder coated extruded aluminum alloy frame, 6063-T6, with pivot pins and end connectors. Installed with regular, moisture or fire resistant gypsum boards.

Features:

• - Easy installation
• - Consistent continuous surfaces
• - Virtually invisible access
• - Concealed hinges and locks

Details:

• Door
• - Extruded aluminum alloy 6063-T3 with gypsum boards
• - Door leaf with brush (Optional)

• Gypson Boards
• - Regular
• - Moisture Resistant
• - Fire Resistant
• - Thickness: 12 - 25mm

• Frame
• - 2mm thick concealed extruded aluminum alloy 6063-T3

• Installation
• - Ceiling
• - Wall

• Hinge
• - Pivot Pins

• Optional Sizes
• - 200 x 200mm
• - 300 x 300mm
• - 400 x 400mm
• - 450 x 450mm
• - 500 x 500mm
• - 600 x 600mm
• - 700 x 700mm
• - 800 x 800mm
• - 900 x 900mm
• - 600 x 1200mm
• - 1000 x 1000mm
• - 1200 x 1200mm

• Finish
• - Powder RAL 9010
• - Powder RAL 9003

Hardware

Piviot Pin

Safety Chain

Touch Latch

This type of access panel has been designed for areas where it is required to be discretely installed into a tiled wall. It is constructed with 1.20 - 1.50mm thick steel frame and client’s ceramic tiles.

Features:

• - Easy installation
• - Clean architectural finish
• - Virtually invisible access
• - Custom sizes available to suit tile sizes & depth
• - Fully concealed hinges

Details:

• Door
• - 1.2 to 1.5mm thick GI Steel
• - Ceramic tiles (by others)

• Frame
• - 1.2 to 1.5mm thick GI Steel

• Installation
• - Wall

• Hinge
• - Pivot Pins

• Optional Sizes
• - 200 x 200mm
• - 300 x 300mm
• - 400 x 400mm
• - 450 x 450mm
• - 500 x 500mm
• - 600 x 600mm
• - 700 x 700mm
• - 800 x 800mm
• - 900 x 900mm
• - 600 x 1200mm
• - 1000 x 1000mm
• - 1200 x 1200mm

• Finish
• - Powder RAL 9010
• - Powder RAL 9003

Hardware

Magnetic Latch

Safety Chain

Pivot Hinge

Designed for wall and ceiling applications, this fire rated Access Panel is made of 1.20-1.50mm thick sturdy lightweight steel frames, concealed hinges and locks. Available with exposed or concealed flange or beaded frame for a flushed finish.

Features:

• - 120 minutes fire rated
• - Easy operation & installation
• - Fully powder coated with clean ability properties
• - Wide range of frames and hardware
• - With honeycomb infill for additional durability

Details:

• Door
• - 1.2 to 1.5mm thick GI Steel

• Frame
• - Exposed Flange
• - Concealed Flange
• - Beaded

• Installation
• - Ceiling
• - Wall

• Hinge
• - Pivot Pin
• - Piano Hinge
• - Pivot Hinge
• - Butt Hinge

• Optional Sizes
• - 200 x 200mm
• - 300 x 300mm
• - 400 x 400mm
• - 450 x 450mm
• - 500 x 500mm
• - 600 x 600mm
• - 700 x 700mm
• - 800 x 800mm
• - 900 x 900mm
• - 600 x 1200mm
• - 1000 x 1000mm
• - 1200 x 1200mm

• Finish
• - Powder RAL 9010
• - Powder RAL 9003

Hardware

Pivot Pin

Pivot Hinge

Piano Hinge

Butt Hinge

Budget Lock & Key

Touch Latch

Tubular Lock& Key

Cam Lock & Key

Stainless steel access panels are designed to ensure a flush surface throughout for cleanroom application. These are designed to be easily cleaned with tight smooth joints to the ceiling and wall finishes. Uses Type 304/316 L Stainless Steels which are extremely resistant to corrosion.

Features:

• - Easy installation
• - Corrosion resistant
• - Virtually invisible access
• - Suitable for cleanroom, sterile rooms, food processing and research areas
• - Wide range of hinges and locks

Details:

• Door
• - 1.2 to 1.5mm thick GI Steel

• Frame
• - Exposed Flange

• Installation
• - Ceiling
• - Wall

• Hinge
• - Pivot Pin
• - Piano Hinge
• - Pivot Hinge
• - Butt Hinge

• Optional Sizes
• - 200 x 200mm
• - 300 x 300mm
• - 400 x 400mm
• - 450 x 450mm
• - 500 x 500mm
• - 600 x 600mm
• - 700 x 700mm
• - 800 x 800mm
• - 900 x 900mm
• - 600 x 1200mm
• - 1000 x 1000mm
• - 1200 x 1200mm

• Finish
• - Brush Finish
• - Mirror Finish

Hardware

Hardware

Pivot Pin

Pivot Hinge

Piano Hinge

Butt Hinge

Budget Lock & Key

Touch Latch

Tubular Lock& Key

Cam Lock & Key

Roof hatch provides safe and convenient access to commercial building roof areas using interior ladders and stairs for maintenance work. It can be installed on flat roofs with a maximum slope of 30°. Made of steel frames, doors and stainless steel hardware. Powder coated to provide corrosion resistance and outstanding exterior durability.

Features:

• - Fully thermally broken curb and cover
• - Safe to operate with one hand
• - Durable and corrosion resistant
• - Burglar and sound proof
• - With full rubber gasket for air tightness

Details:

• Door
• - 2mm thick GI steel
• - Single
• - Double

• Installation
• - Roof

• Optional Sizes
• - 750 x 750mm
• - 750 x 900mm
• - 900 x 900mm
• - 900 x 1200mm
• - 1200 x 1200mm

• Finish
• - Powder RAL 9010
• - Powder RAL 9003

Hardware

Cab Lock

Hinge

Hold Open Arm Kit

Gas Cylinder

Exterior Handle

Interior Handle

Seal Gasket
